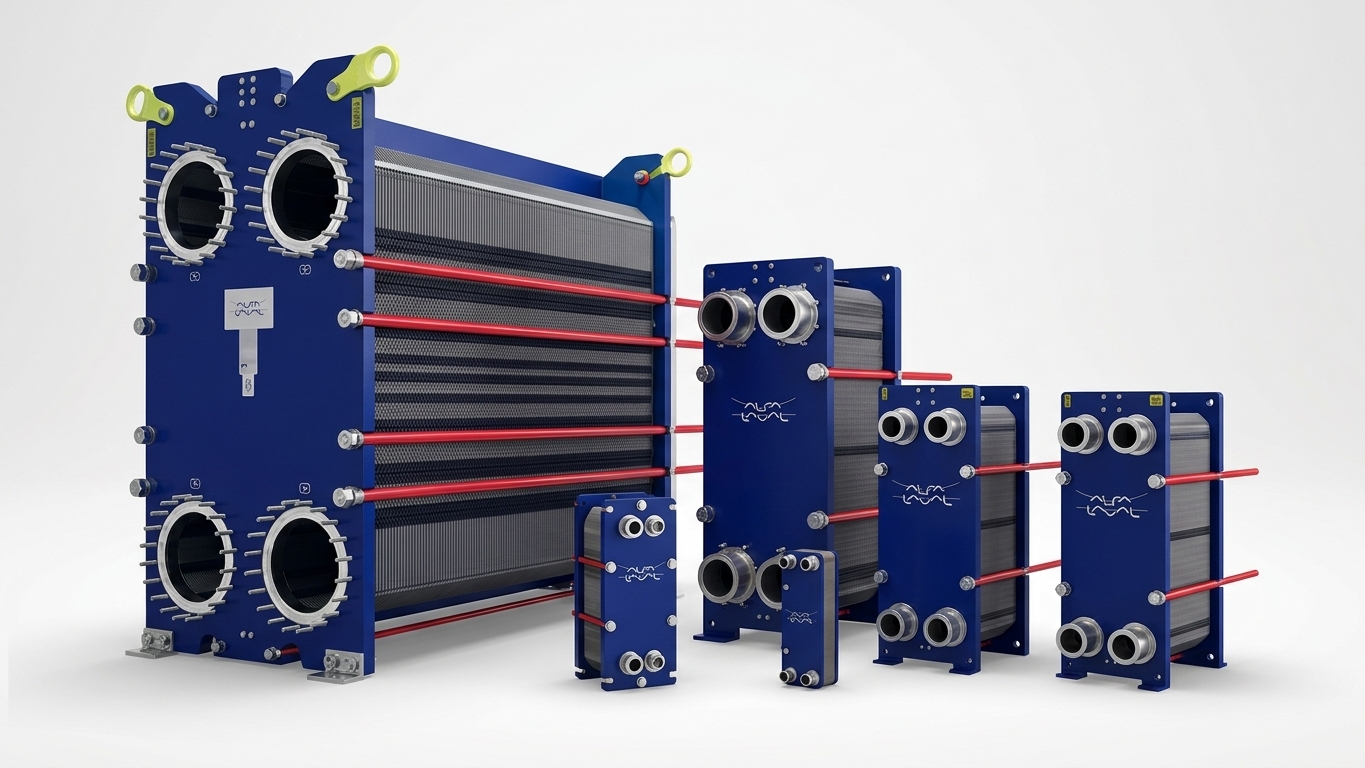

Gasketed Plate and Frame Heat Exchangers
Our gasketed plate-and-frame heat exchangers deliver exceptional thermal efficiency within a compact, space-saving footprint. Engineered with a modular and flexible architecture, these units streamline routine maintenance while allowing for straightforward capacity expansion as your operational demands grow.
Product Description
Key Thermal Applications
We engineer our systems to support a diverse range of critical industrial processes:
• Heating & Cooling: Deliver precise temperature control across complex fluid systems.
• Heat Recovery: Maximize overall energy efficiency by effectively capturing and repurposing waste heat.
• Evaporation & Condensation: Ensure reliable, high-performance phase-change thermal operations.
Industries Served
Built to adapt to a broad scope of demanding operational environments, our heat exchangers serve numerous sectors:
• HVAC & Commercial Refrigeration
• Food, Dairy & Beverage Processing
• Engine & Marine Cooling
• Heavy Processing: Chemical, Oil & Gas, and Power Generation
Gasketed Plate Heat Exchangers for Modern Requirements
Our advanced gasketed plate heat exchangers are engineered to optimize heat transfer through extensive corrugated plate surfaces that efficiently transfer thermal energy from one gas or liquid to another. By combining high thermal performance and outstanding reliability into a space-saving design, we deliver an investment that provides an attractive cost-to-ownership (CTO) ratio over the entire product lifetime, alongside powerful energy-saving capabilities and a reduced environmental footprint.
Operational Advantages
• Maximum Efficiency: Achieve the highest thermal efficiency and a close temperature approach.
• Compact Footprint: Save valuable floor space with units that are exceptionally easy to service and maintain.
• Enhanced Uptime: Minimize fouling, mechanical stress, wear, and corrosion for uninterrupted operations.
• Complete Flexibility: Easily adapt the unit to meet changing duty requirements over time.
Plate and Gasket Technology
The sophisticated design of our corrugated plates maximizes thermal transfer by creating a vast yet compact total surface area, allowing heat to be drawn seamlessly between fluids or gases.
Each plate features a pressed herringbone corrugation pattern. When two plates are superimposed with opposing herringbone orientations, they generate a helix-like flow path and high turbulence, resulting in superior heat transfer coefficients and effective self-cleaning characteristics. Furthermore, fine-tuning the corrugation pattern enables our gasketed plate heat exchangers to excel across diverse processes, including those involving heavily contaminated or dirty media.
Distribution Area & Sealing Precision
Our specialized plate distribution area ensures an even, uniform flow of fluid across the entire surface of the plate to maximize overall heat transfer capability. This optimized flow distribution actively minimizes fouling and eliminates uneven temperature zones, allowing your equipment to maintain peak performance levels over time without unnecessary energy losses, escalating maintenance costs, or unplanned operational stops.
We recognize that gaskets are vital components in determining total heat exchanger performance. Consequently, we design our gaskets and plates as an integrated system to guarantee an optimized seal tailored precisely to your specific operating duty. By selecting the correct profile, width, thickness, polymer type, and compound, we eliminate the risk of premature leakage, gasket failure, or plate damage. The result for your facility is a significantly prolonged gasket lifespan, reduced downtime, and lower overall maintenance costs.
